Model Name

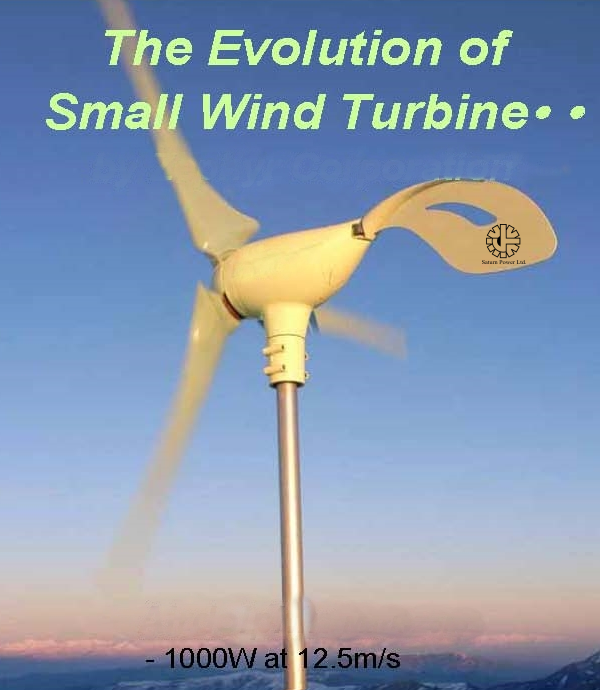

Airdolphin   Z-1000

Wind Turbine Type

Horizontal axis, up-wind

Rotor Diameter

1,800 mm

Mass

17.5 kg

Tower Diameter

48.6 mm

Number of Blades

3

Blade Material

Carbon-fiber skin

Blade Mass (per piece)

380 g

Body Material

Aluminum diecast

Body Construction

Screw-free joints (based on traditional Japanese handicrafts)

Product Finish

Teflon-based paint

Control System

Built-in Zephyr-Original Power Management System (ZPMS)

Protection Circuit

Built-in

Data Logger

Built-in

Yaw Control

Free yaw (360 degrees)

Direction Control

Original Swing-Rudder System

Output Control

Non-stop output control (incl. Stall Mode)

Start-up Wind Speed

0 m/s (Power-Assist Function)

Cut-in Wind Speed

2.5 m/s

Cut-out Wind Speed

50 m/s

Survival Wind Speed

65 m/s

Rated Power

1,000 W (12.5 m/s)

Rated Rotor Speed

1,250 rpm

Maximum Power

3,200 W (20 m/s)

Maximum Rotor Speed

1,600 rpm (20 m/s)

Mass per Watt

17.5 g/W (at rated power)

Power Generation Features

Wind Speed

(m/s)

Output

 (w)

Power Generation Amount

Avg. Wind (m/s)

Per Day

(kwh)

Per Month

(kwh)

Per Year

(kwh)

Normal Mode

3.5

27

3.0

1

20

240

6.5

170

4.0

2

60

720

10.0

620

5.0

3.6

110

1320

12.5

1000

6.0

5

150

1800

15

1780

7.0

7.3

220

2640

17.5

2520

8.0

8.6

---

---

20.0

3200

9.5

12

---

---

Stall Mode

10.0

380

10.0

13

---

---

20.0

320

30.0

600

40.0

400

50.0

0

Output Voltage (Normal Mode)

25 V DC

Communication System (Signal Output)

RS-485

Recommended Battery Capacity

Off-grid power system：500Ah or more / On-grid power system 100Ah or more

Options：

Remote Monitor

RM-1000

Monitor for accumulated generated output display. Real-time generated output display, wind direction/wind speed display, battery voltage display, PC connection by wired/wireless LAN, flash memory slot, AC adapter or DC 24V power system, analog output  Dimensions(W x H x D)：240x152x50(mm)
Weight：850 g
